Prepare Cam300

Prepare a Raymarine Cam300 camera to work with your BRNKL.

This is an expert procedure

To prepare Cam300, follow these steps:

A | Find camera IP address:

Using a Windows computer connected to the same Raymarine network as the camera:

1. Open ONVIF Device Manager, or a similar utility.

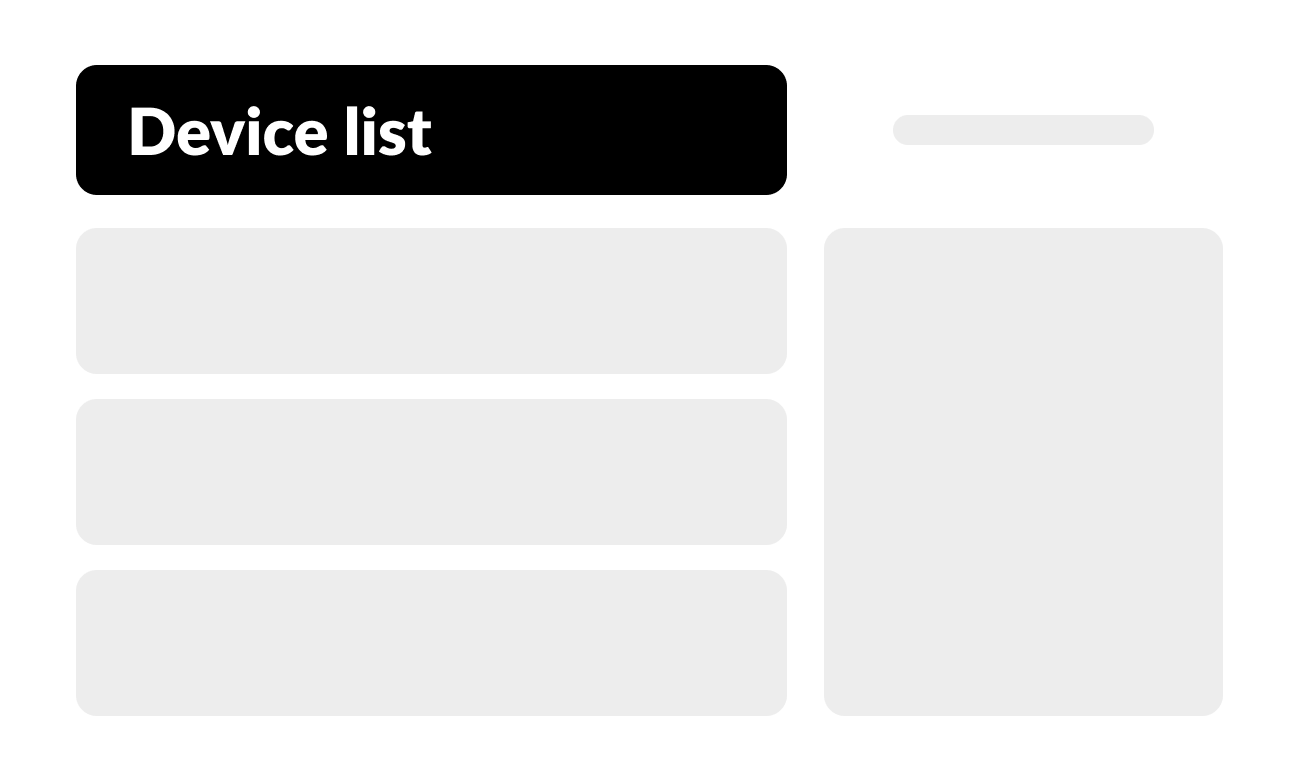

2. Go to Device list.




3. Find the Cam300 camera you want to add to your BRNKL.

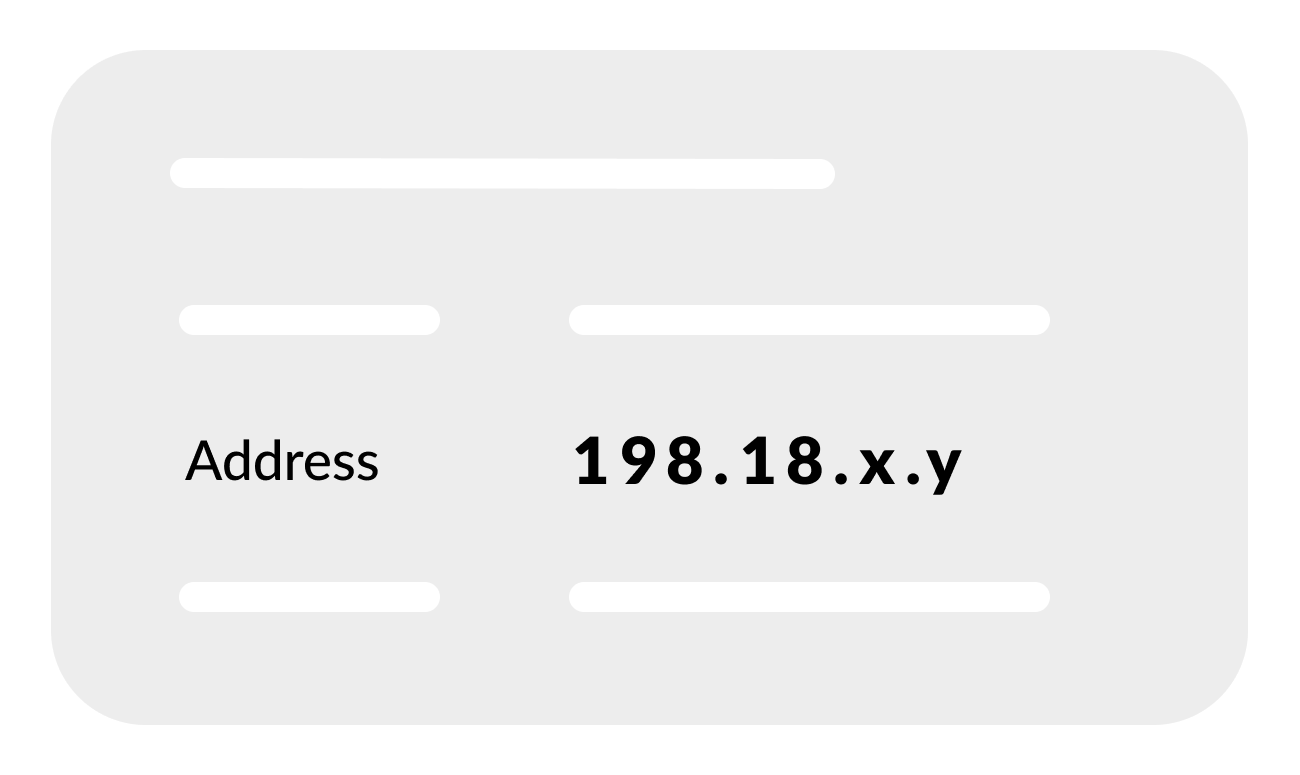

4. Make note of the camera Address, beginning 198.18.xxx.yyy.




B | Open camera webpage

Using a browser connected to the same Raymarine network:

1. In the address bar, enter the camera IP address.

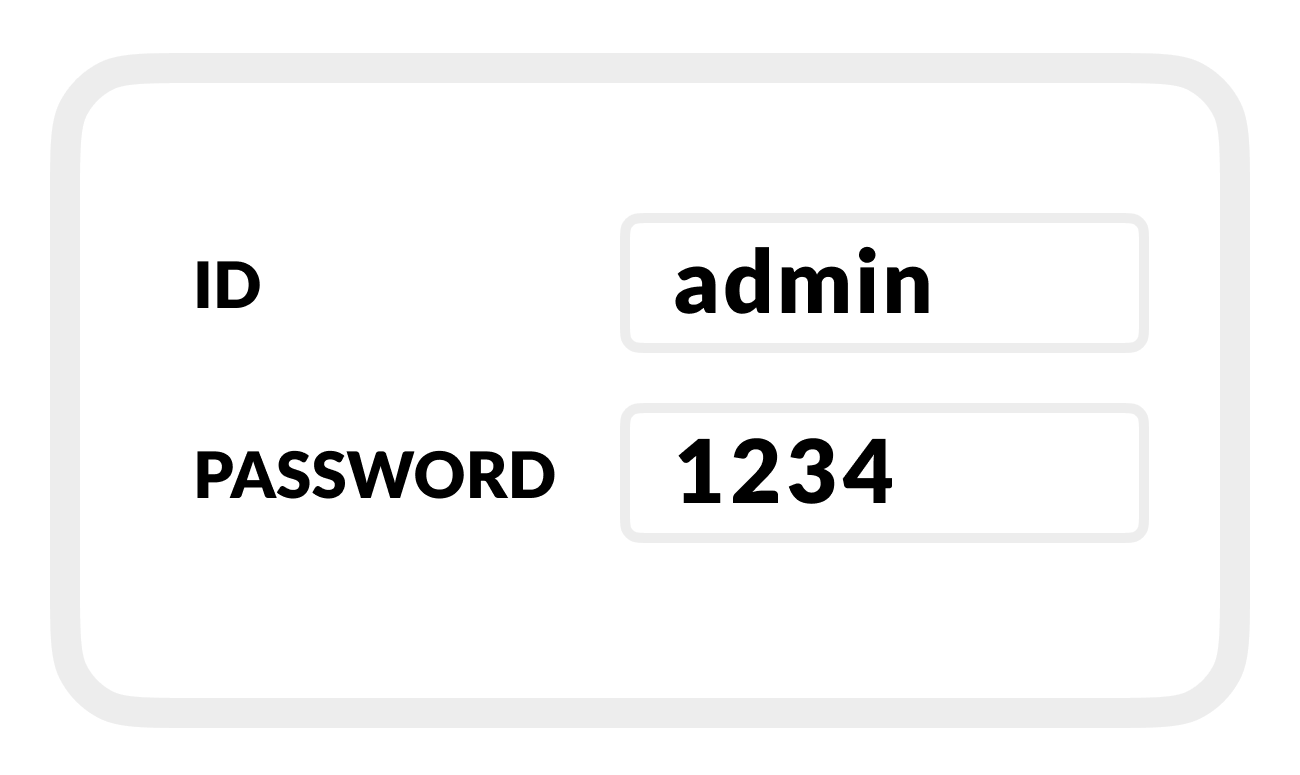

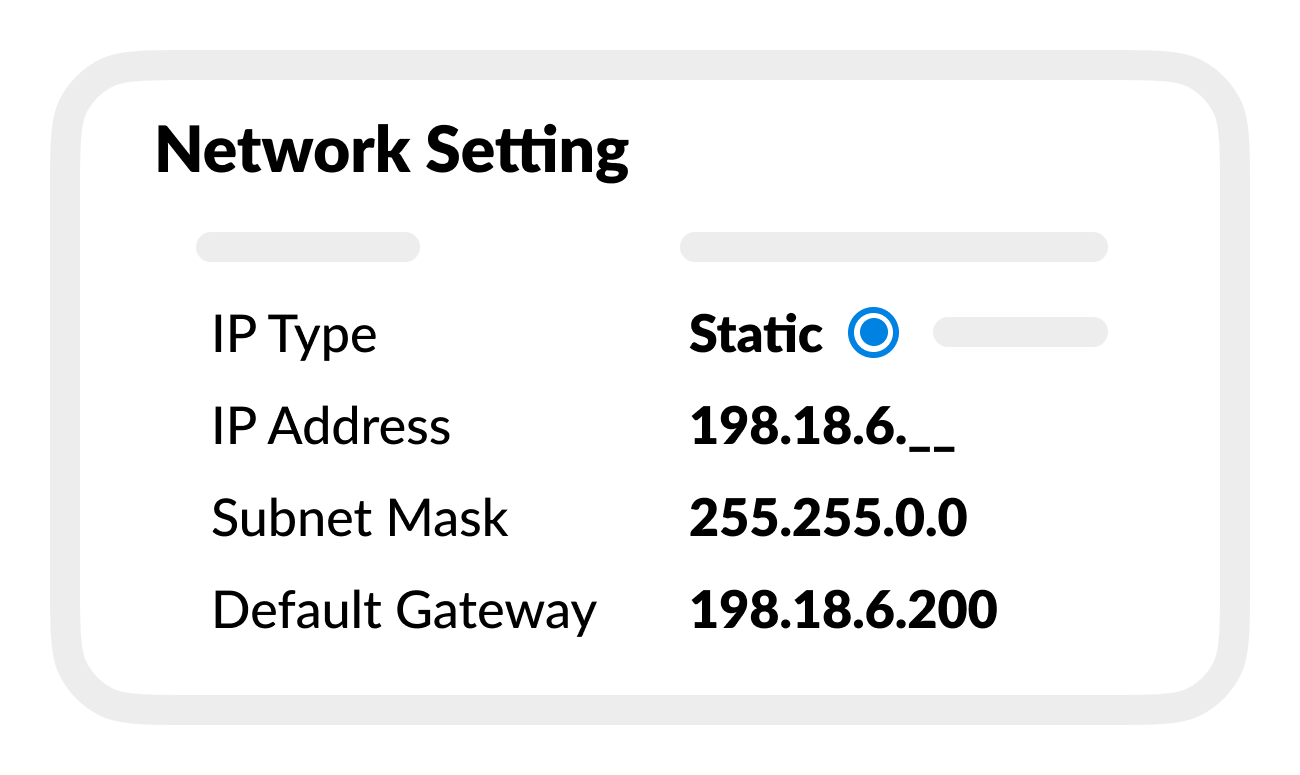

2. On the login page, enter the following:

• ID: admin

• PASSWORD: 1234

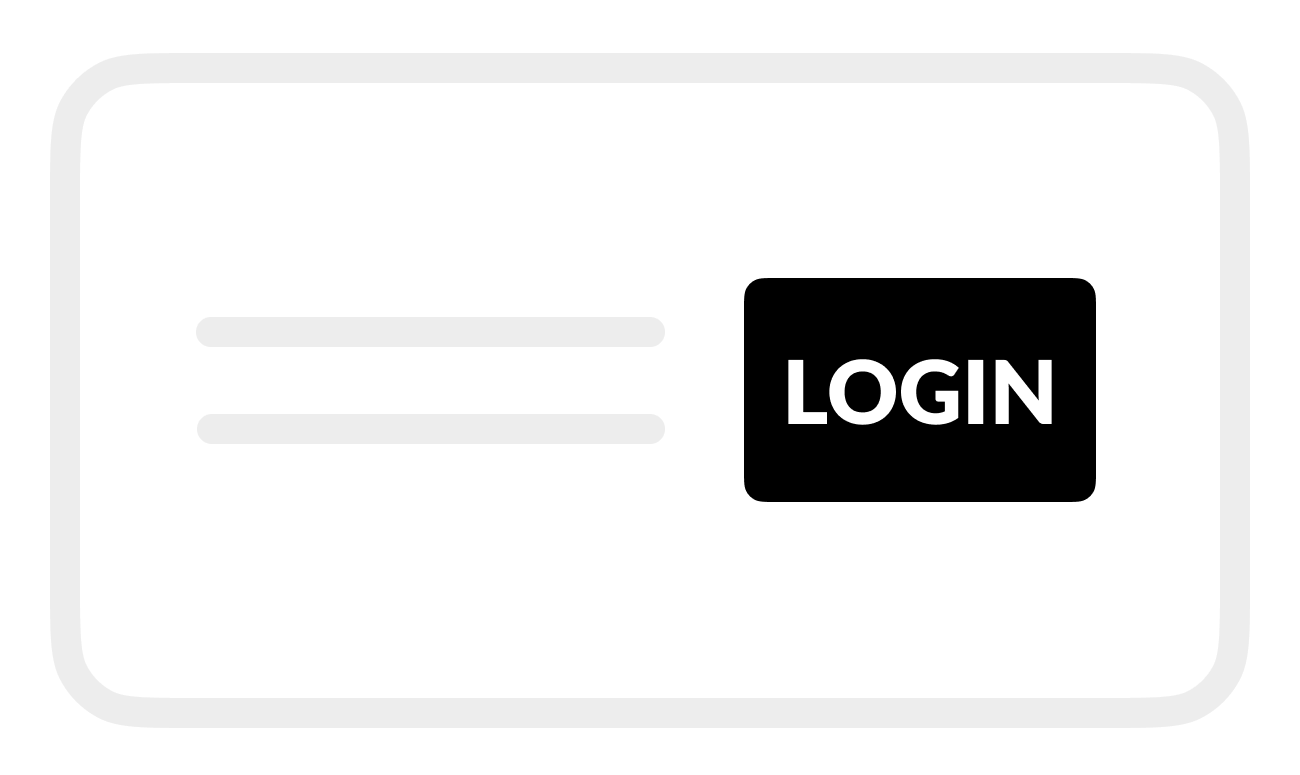

1. Select LOGIN.

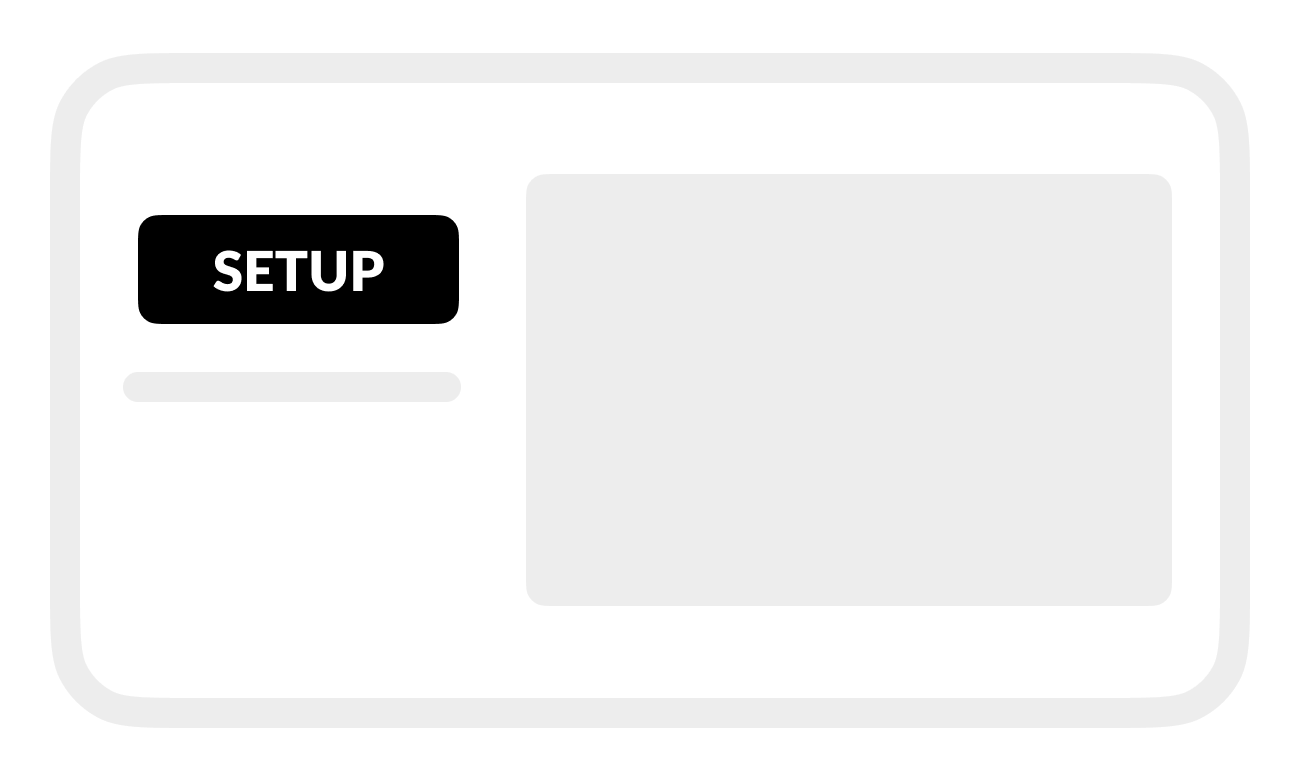

2. Select SETUP.




C | Set stream settings

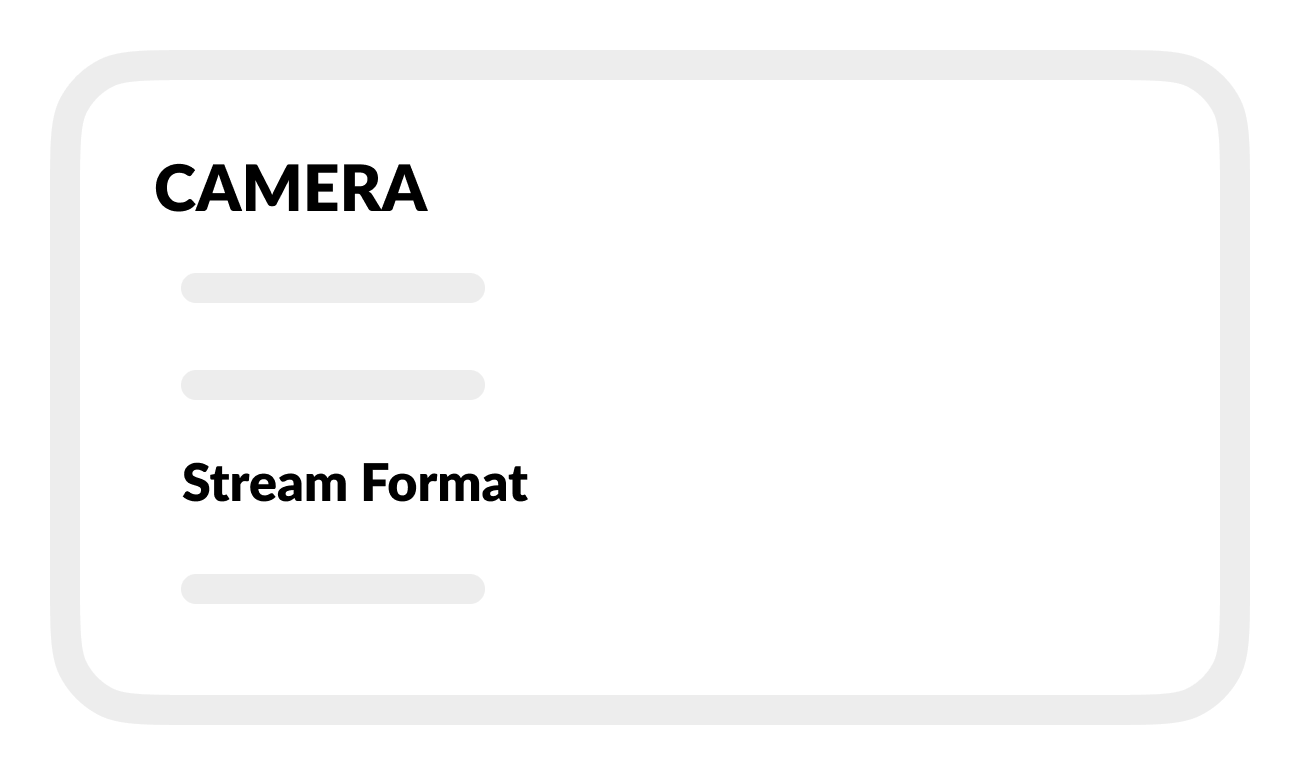

1. Go to CAMERA, then select Stream Format.




2. In First Stream Setting, set Frame Rate to 20.




3. Set Bit Rate to 2.4 Mbps (2400000 bps).

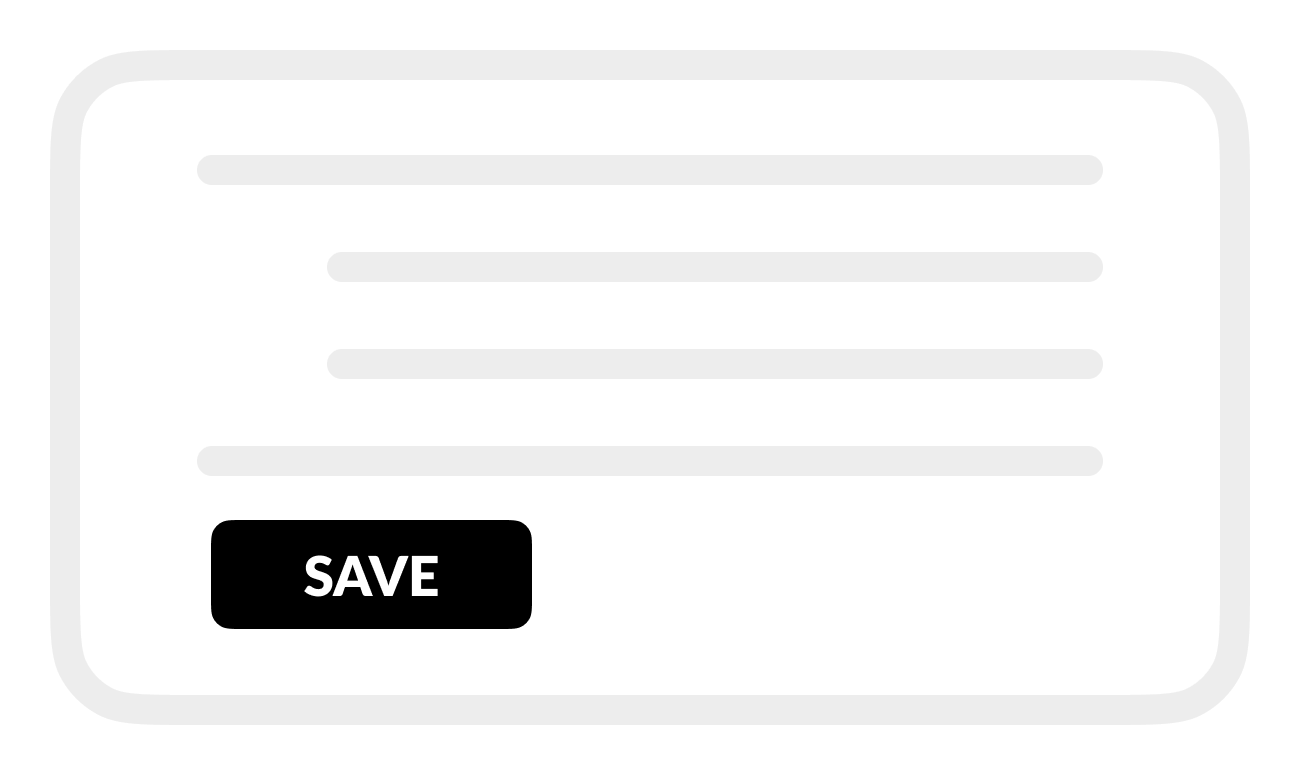

4. Save settings.




D | Set network settings

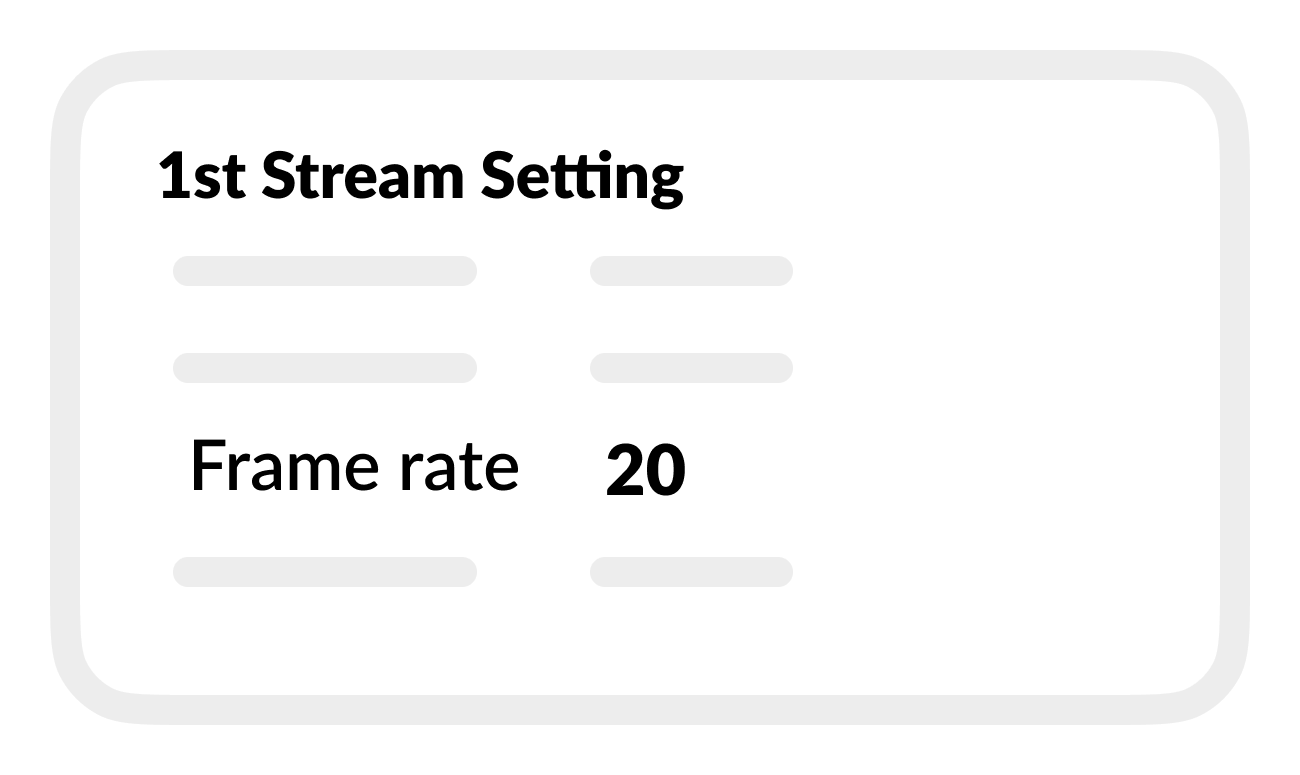

1. Go to NETWORK, then select Network Setting.




2. Enter the following settings:

• IP Type: Select Static

• IP Address: 198.18.6. _ _

  • Assign a unique host portion (_ _ ), within the range of 50-90, and make note of the full IP address.

• Subnet Mask: 255.255.0.0

• Default Gateway: 198.18.6.200




Save settings.
