Prepare Axis Camera

Prepare an Axis network camera to work with your BRNKL Black.

Install Axis camera before preparing.

A | Find camera IP address

Using a switch/router interface or AXIS IP Utility on the same network as the camera:

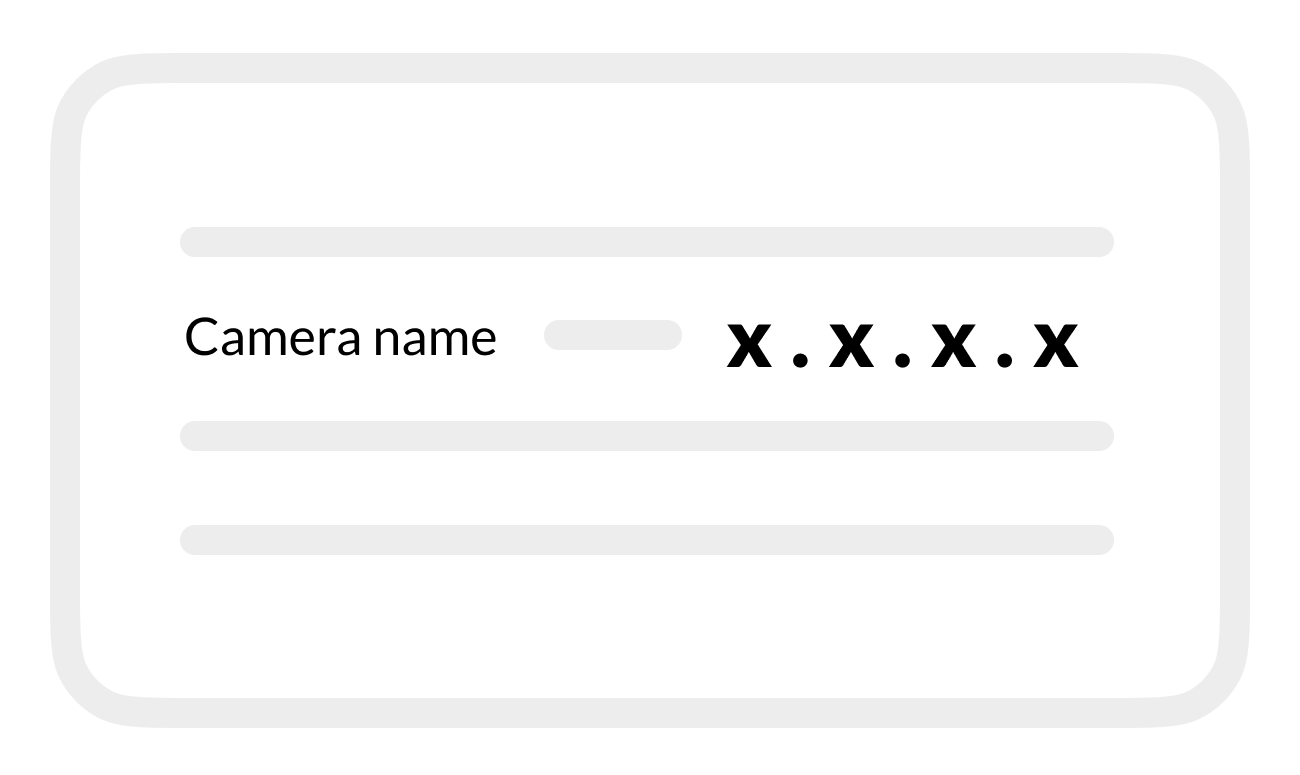

1. Go to Devices or Clients.



2. Find the camera you want to add to your BRNKL.

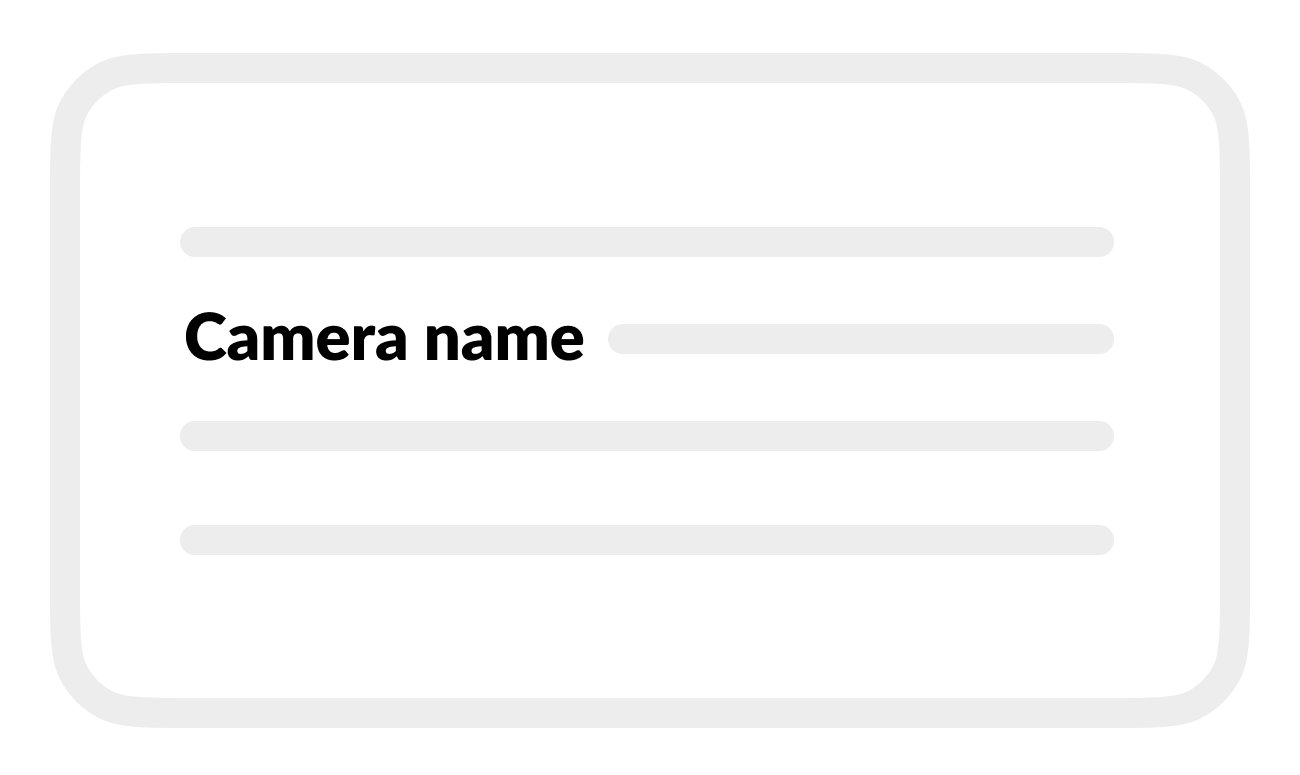

3. Make note of the camera IP address.



B | Open camera webpage

Using a browser connected to the same network as the camera:

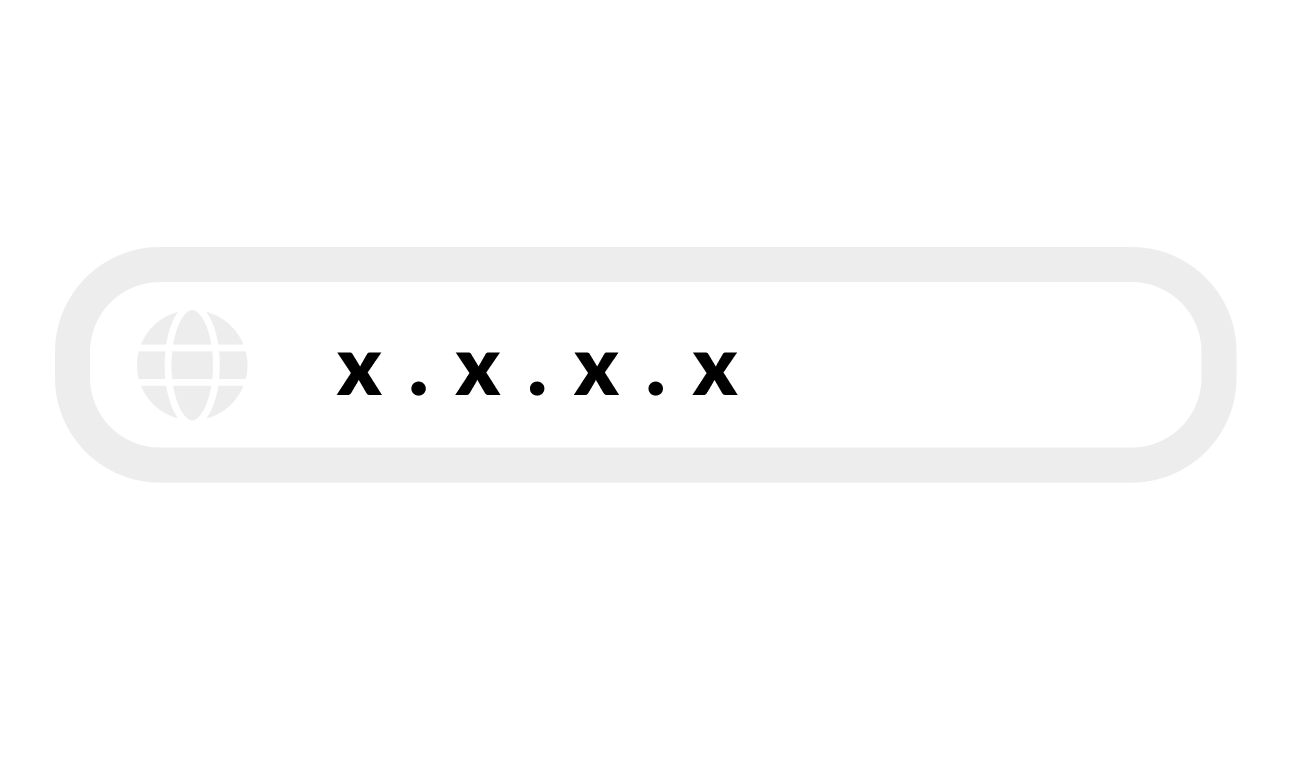

1. In the address bar, enter the camera IP address.

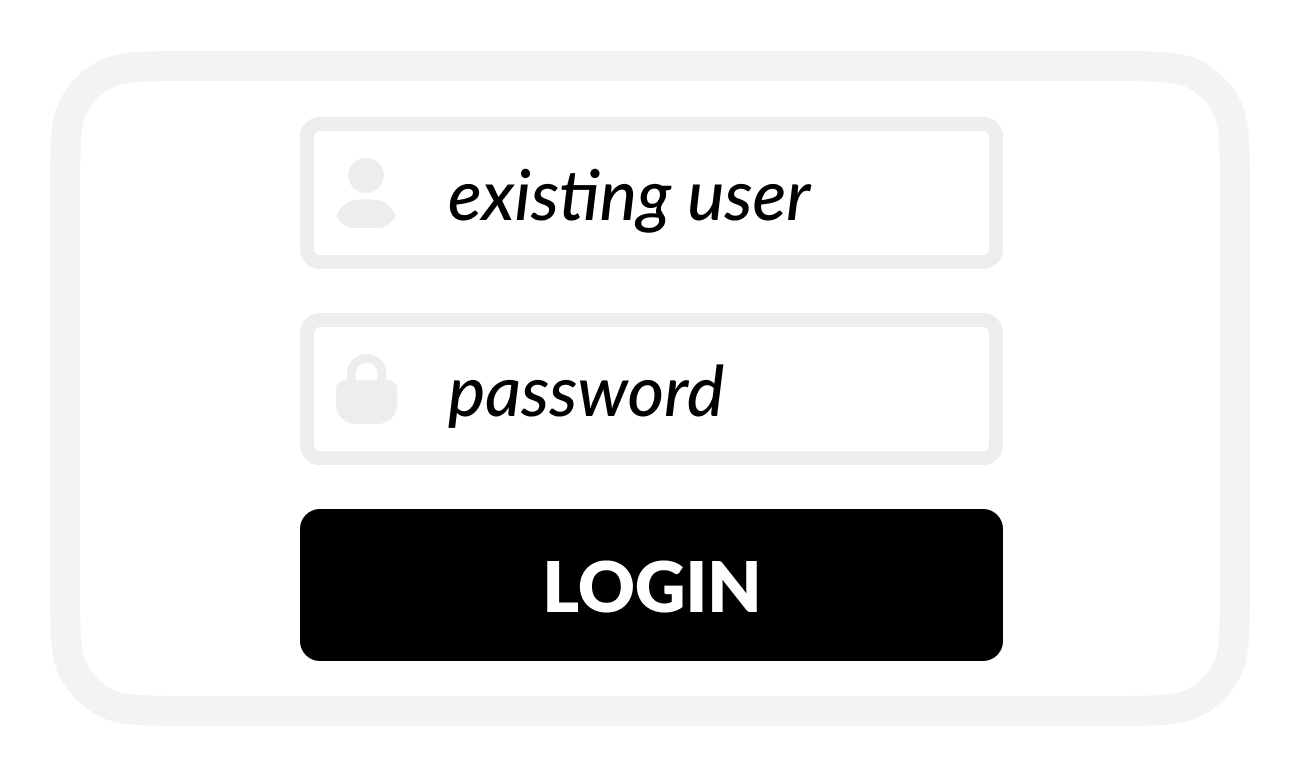

2. On the camera Welcome page, do one of the following:

• If the camera was set up previously, LOGIN using root or other account.

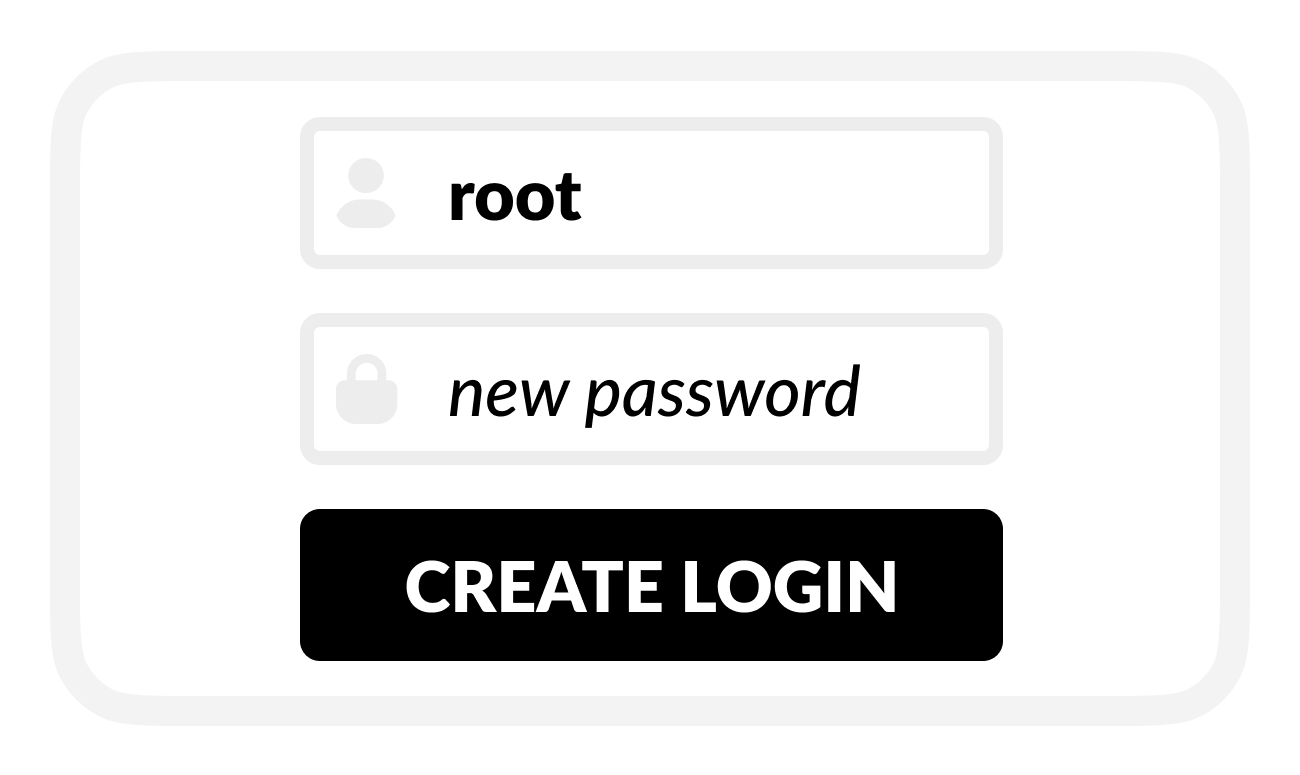

• If prompted, set a password for the default root account and CREATE LOGIN .
  Make note of the password.



C | Add ONVIF user

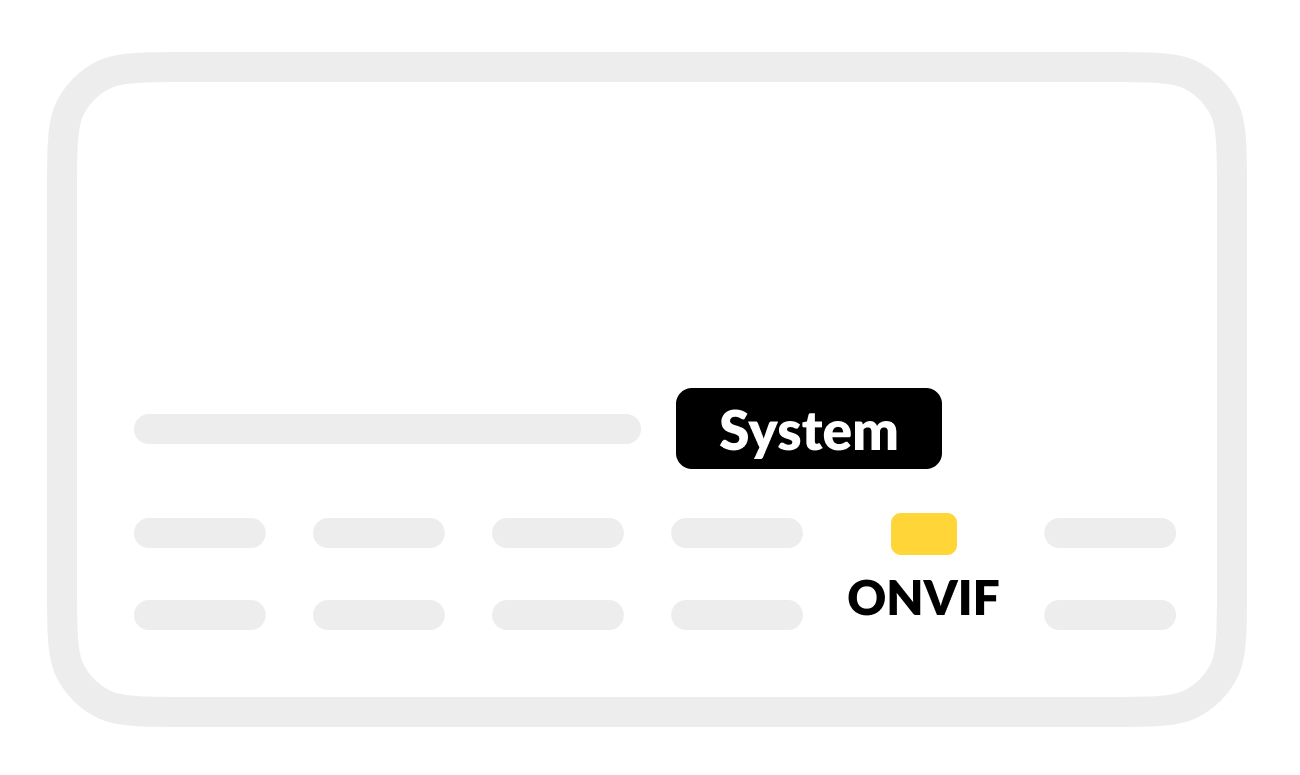

1. From Settings, go to System, then select ONVIF.

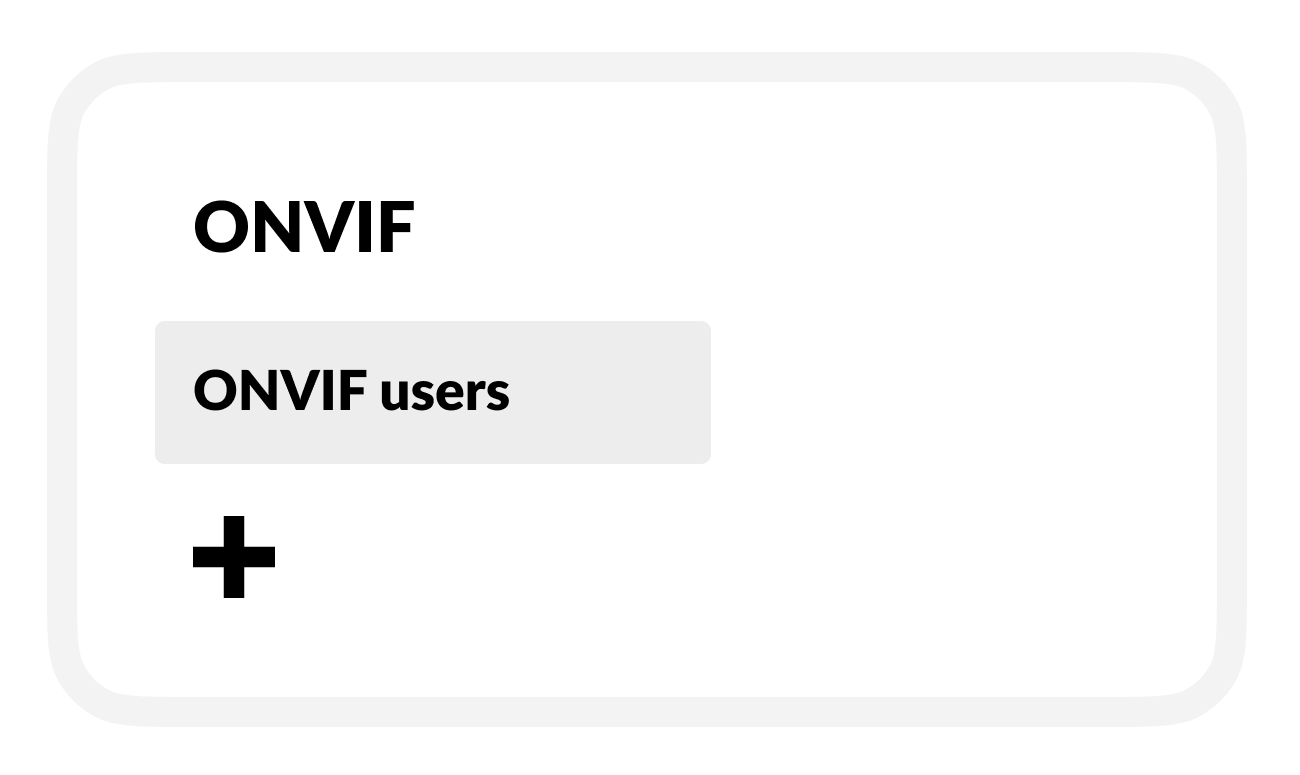

2. Go to ONVIF users, select



   to add a user.

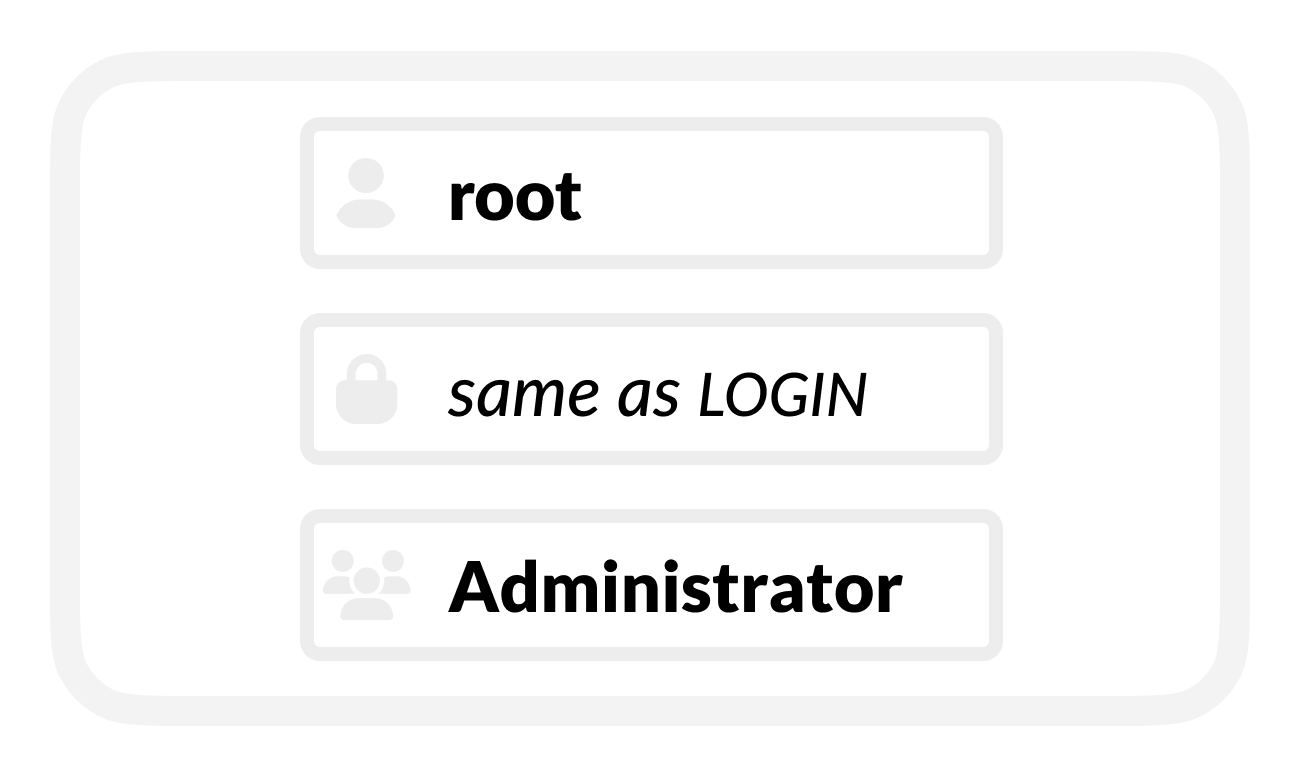

3. Enter the following user settings:

• Username: root

• Password: (same password as camera webpage LOGIN)

• User group: Administrator

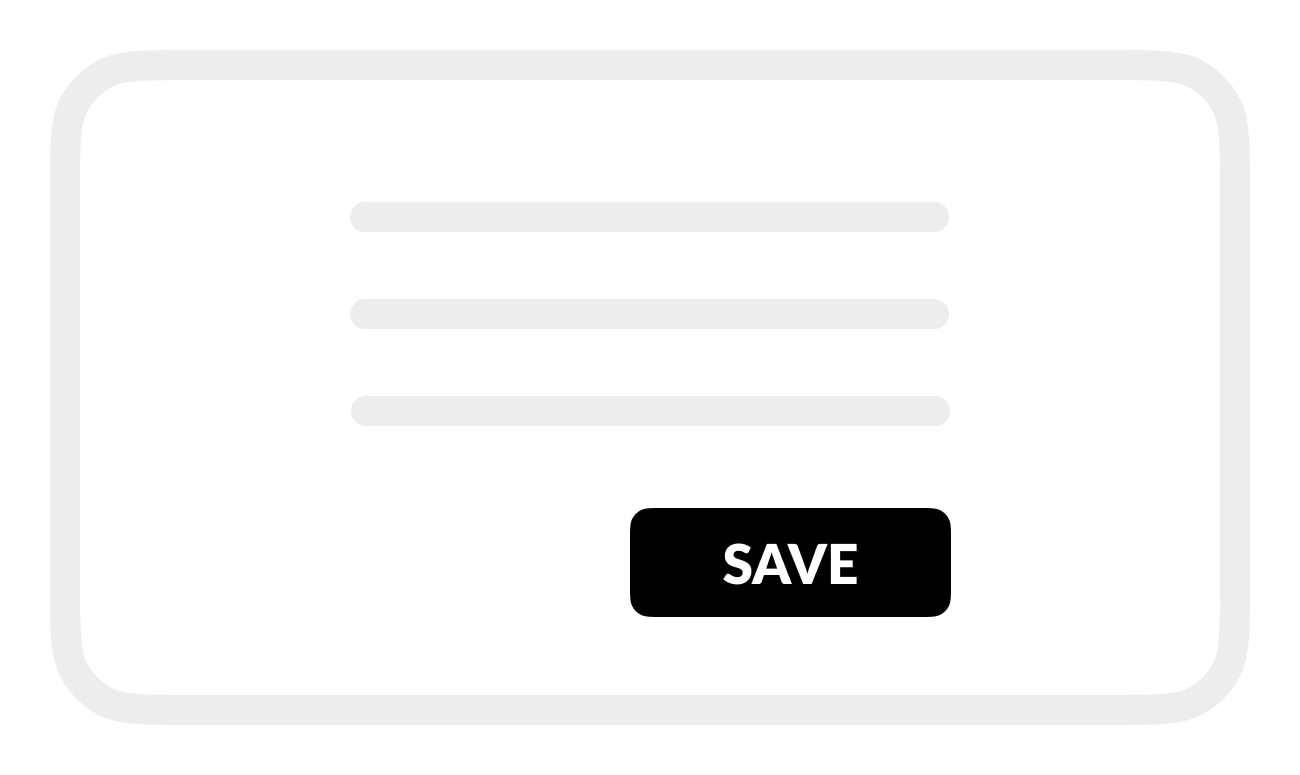

Save settings.
