Connect floodlight

Connect a floodlight to your BRNKL and a DC power source.

To connect floodlight, do one of the following:

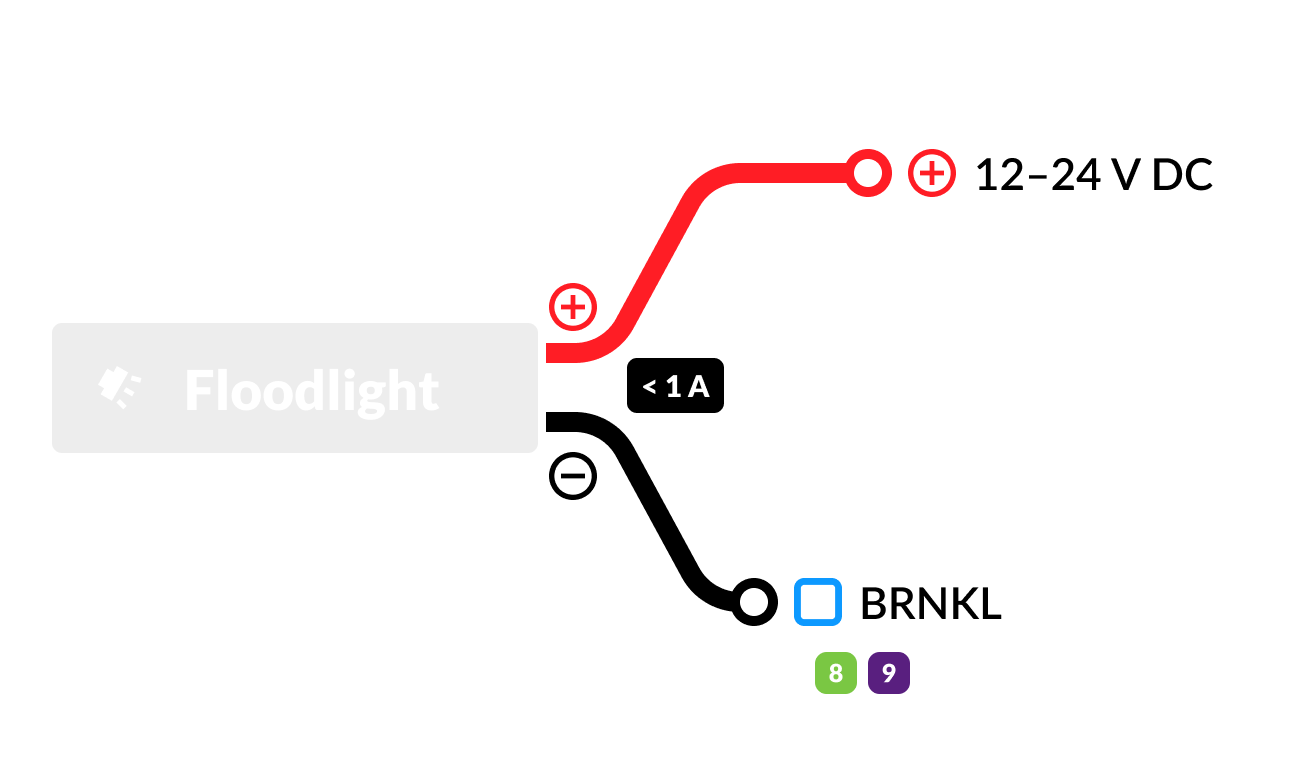

Connect floodlight (< 1 A)

Connect the following:

• Positive terminal to a 12–24 V DC power source terminal.

  • Make sure connection is unswitched.

• Negative terminal to available output channel on BRNKL connector cable.

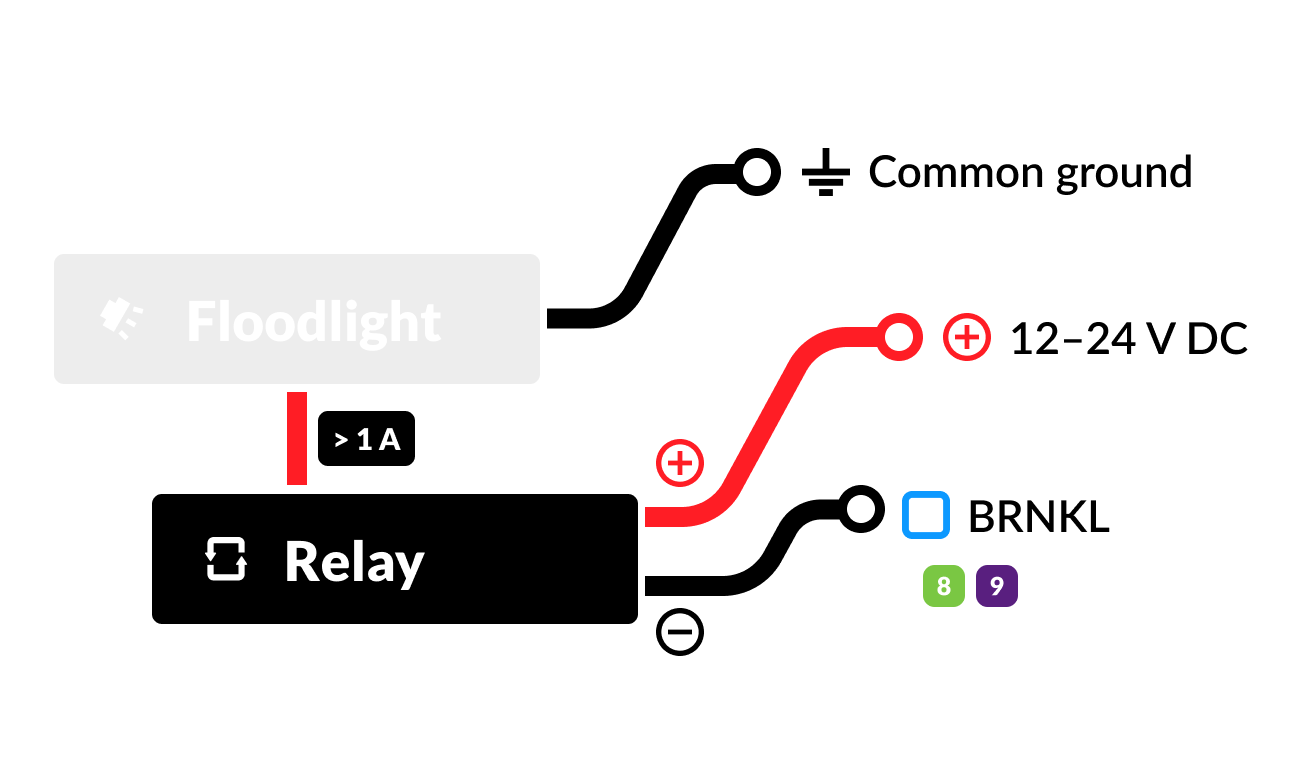

Connect high-powered floodlight (> 1 A)

Using a device-compatible 12–24 V DC automotive relay, connect the following:

• Positive device terminal to 87 (NO) relay terminal.

• Negative device terminal to common ground terminal.

• 30 (COM) relay terminal to 12–24 V DC power source terminal.

  • Make sure connection is unswitched.

• 85 (COIL-) relay terminal to available output channel on BRNKL connector cable.
