Install BRNKL Black

Position and mount your BRNKL.

To install BRNKL, follow these steps:

A | Select position

Follow these guidelines:

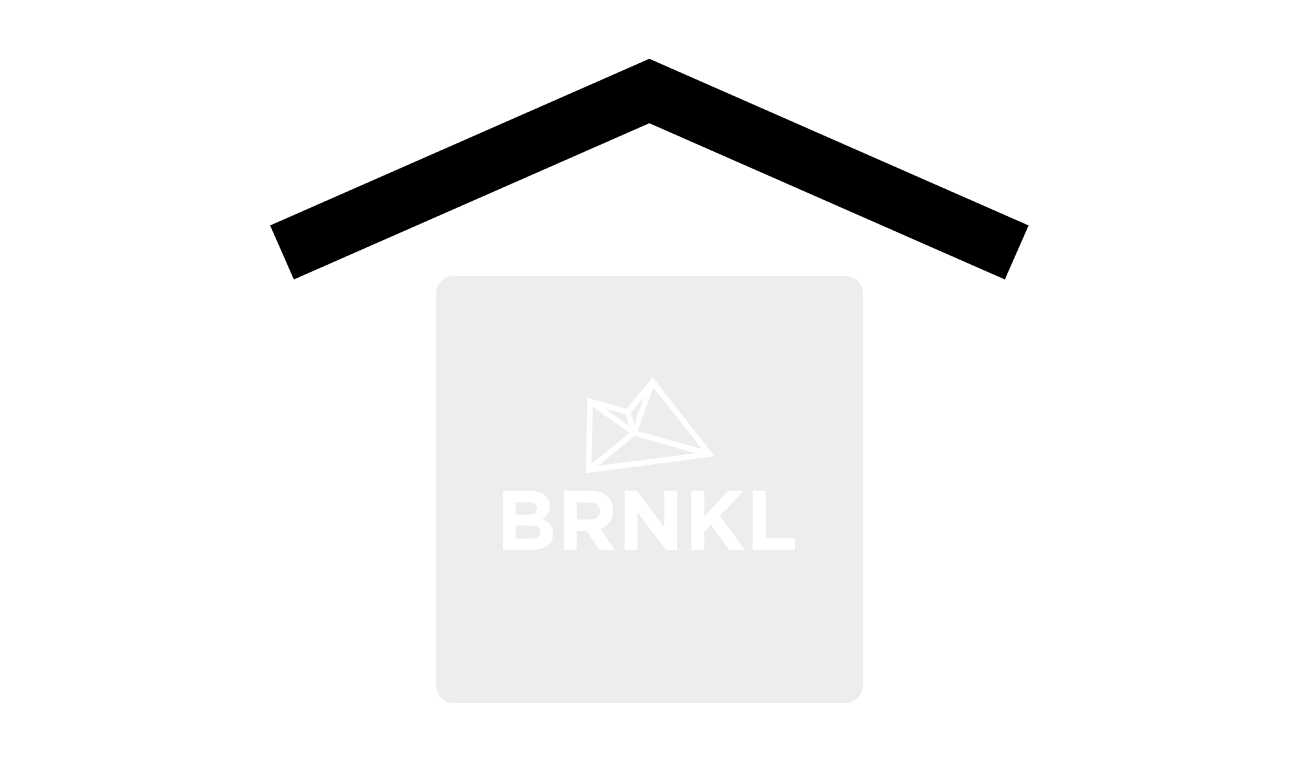

• Place indoors in a dry location.

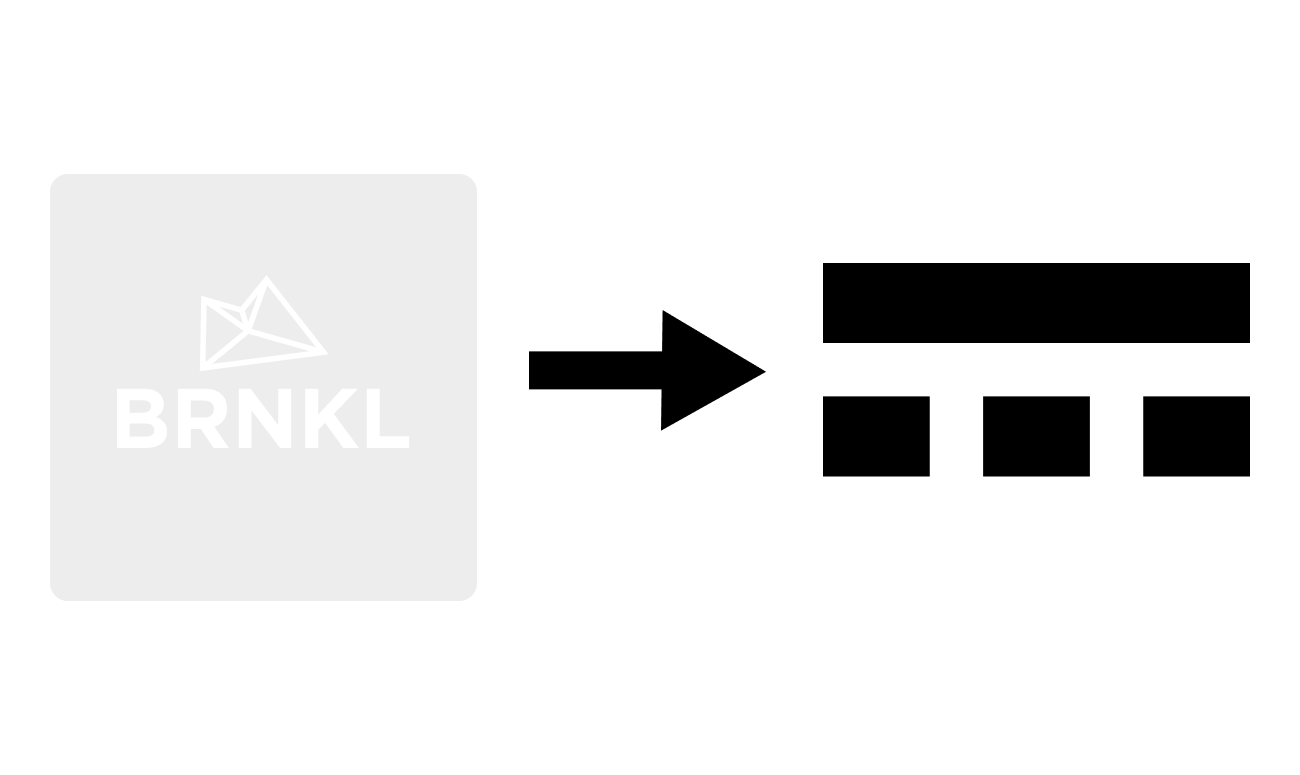

• Allow close access to a 9-60 V DC power supply.

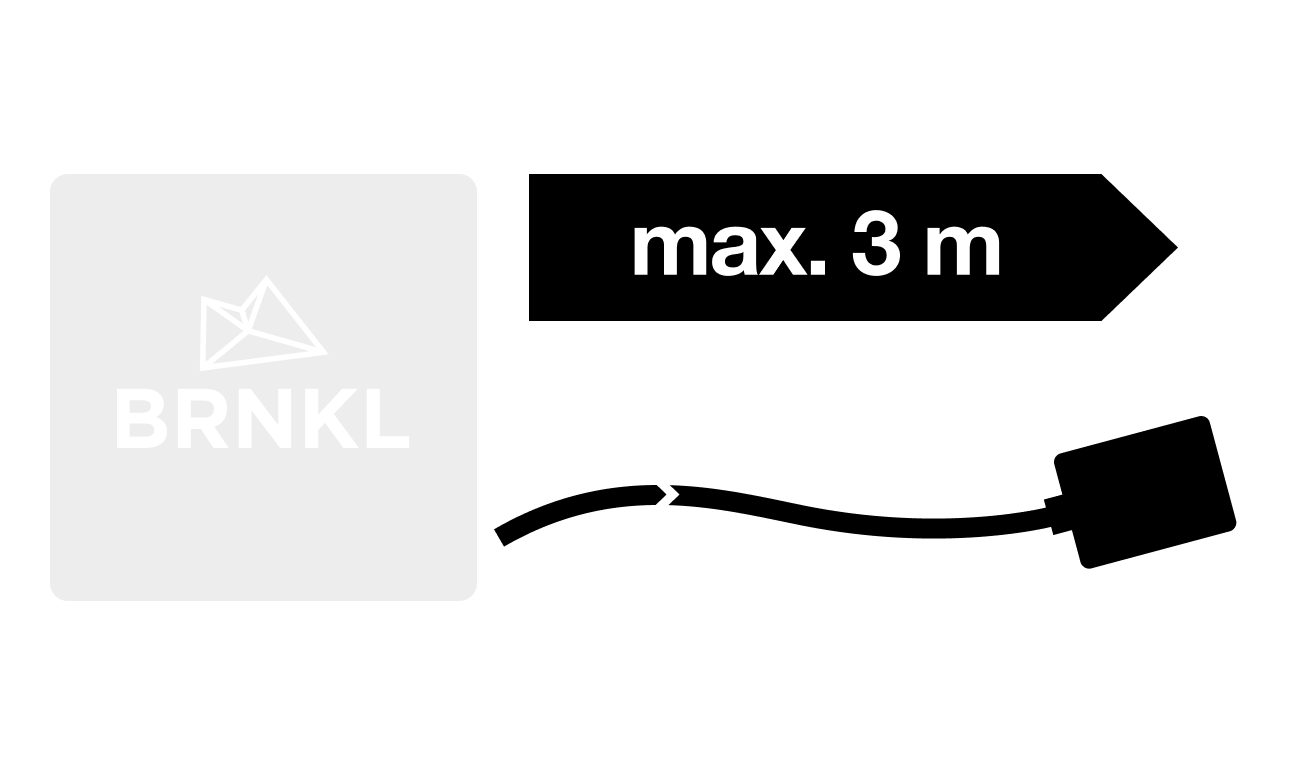

• Provide for GPS/GNSS antenna placement within 3 m (10 ft).






• Allow for connections with onboard networks and devices.






• Ensure a stable mounting surface.

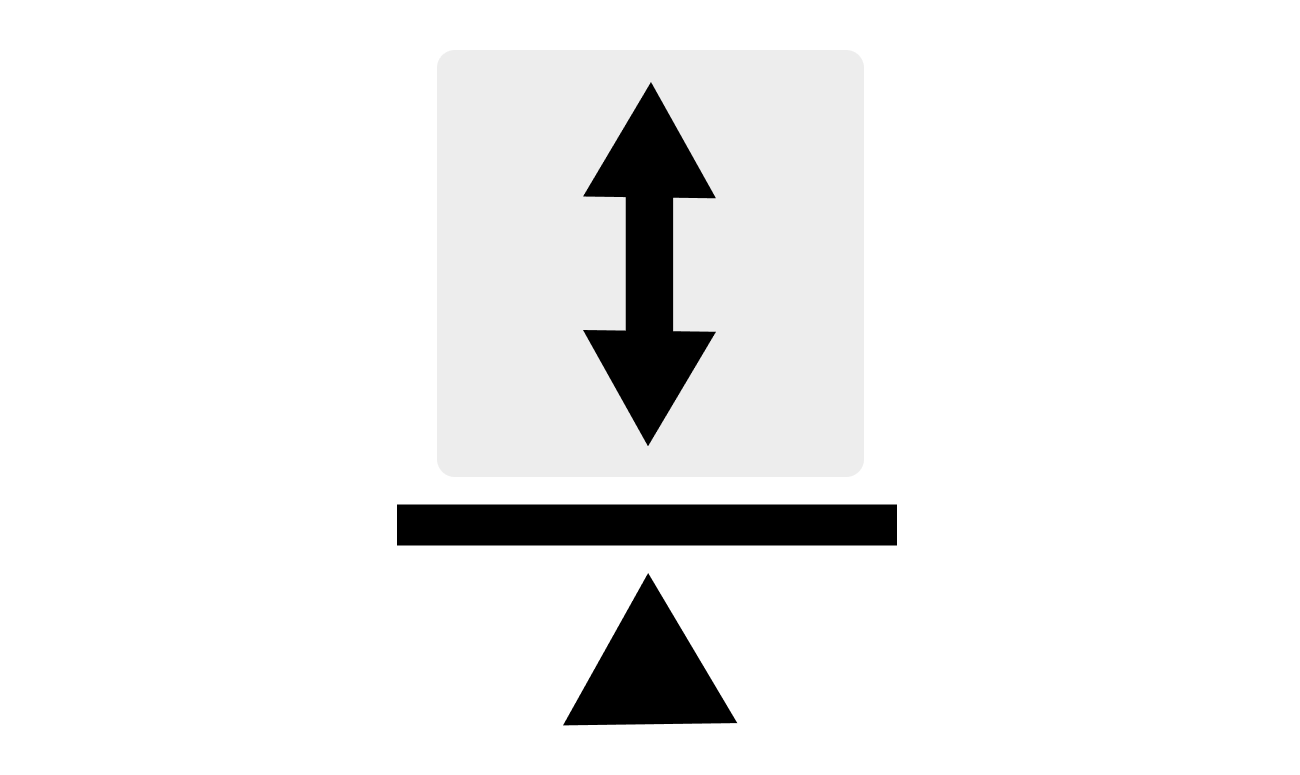

  • Vertical mount recommended.

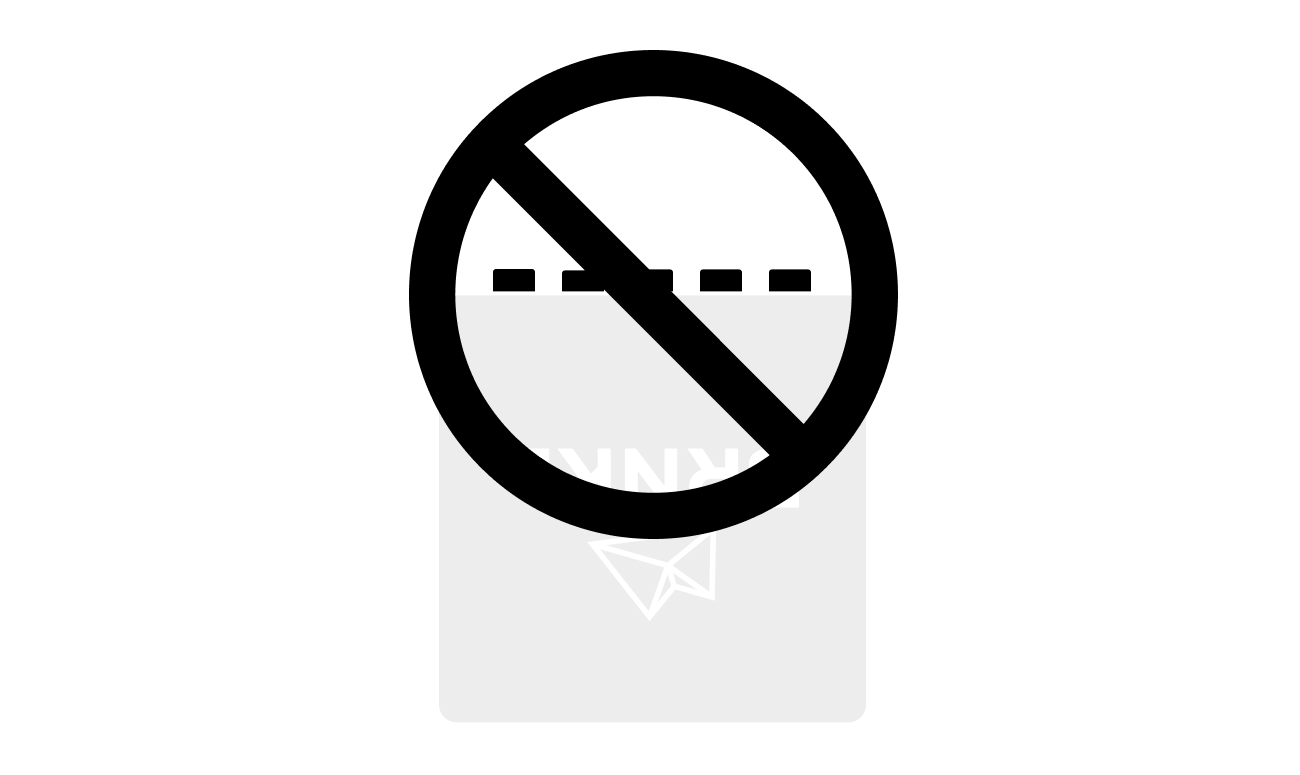

• DO NOT position with connection panel facing up.

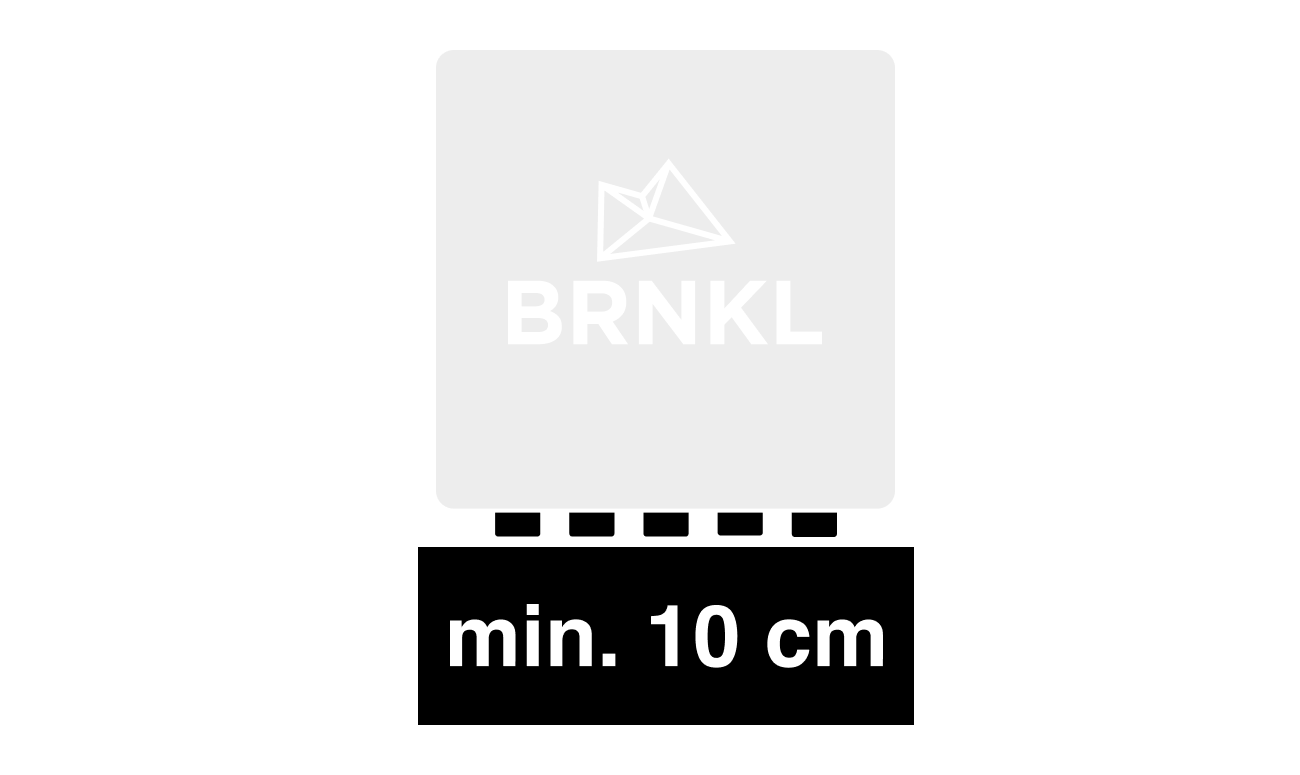

• Allow 10 cm (4") of clearance on the bottom of the BRNKL to access connection ports.






B | Mount device

Follow these steps:

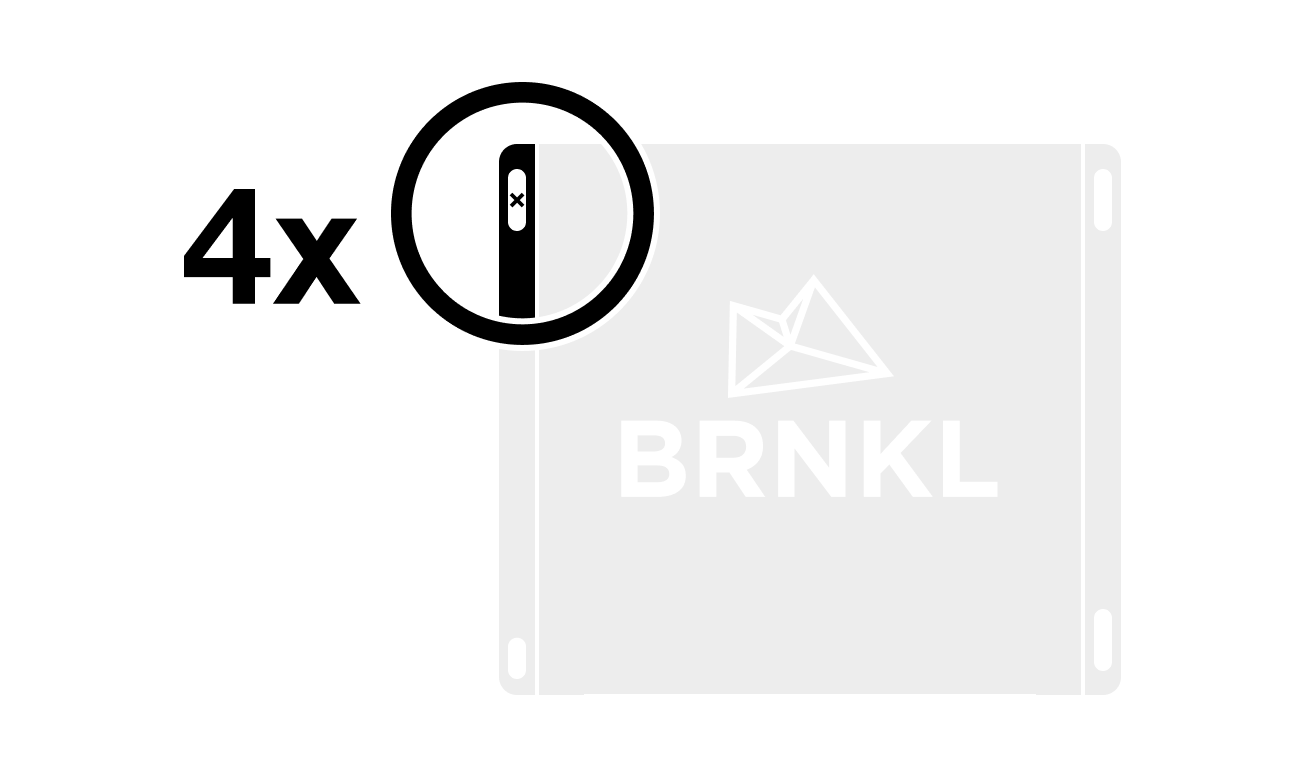

1. Mark the four screw holes.

   Drill pilot holes as required.

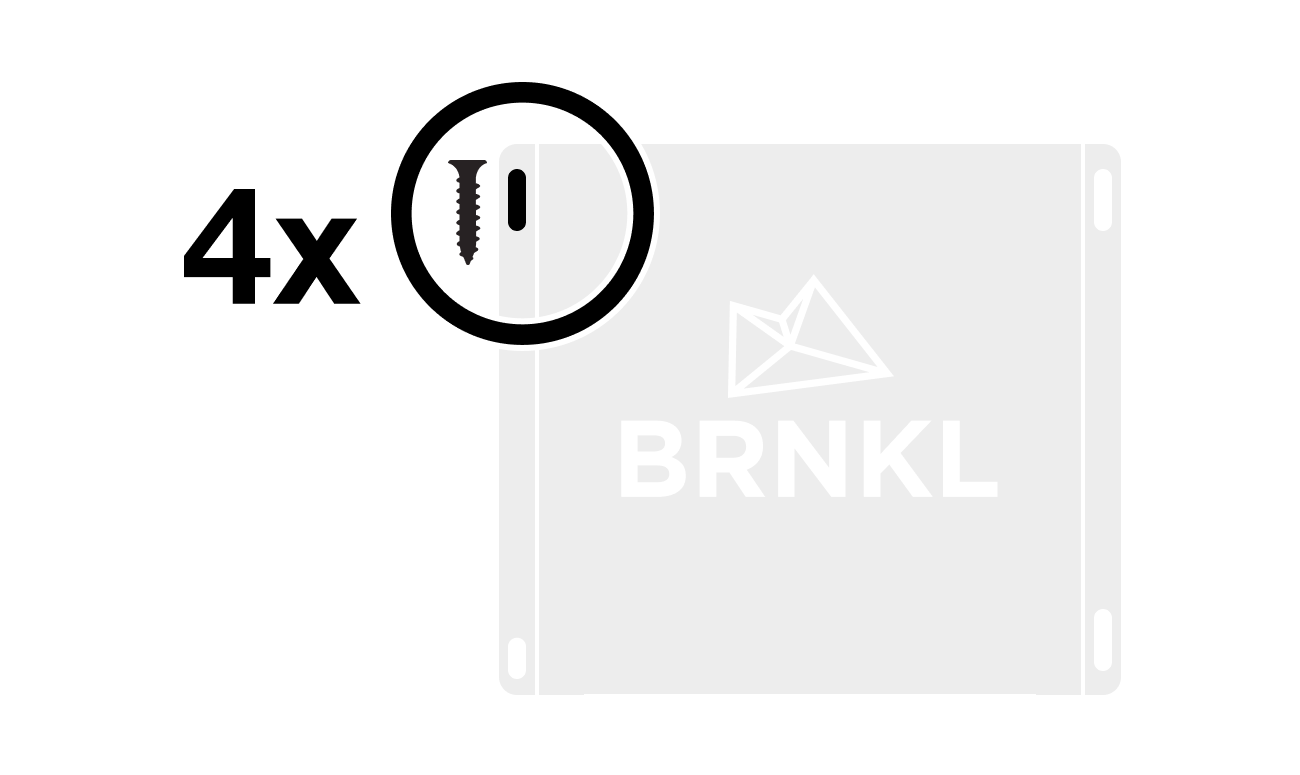

2. Secure with four screws.
